Specification:
Brand new
Applicable Voltage: 36V
Applicable Power: <500w
Max. Working Current: 20A
Continuous Maximum Current: 5A
Over-discharge Protection Voltage: 2.6v
Overcharge Protection Voltage: 4.25v
Charging Current: max. 10A
Balance Voltage: 4.2v
High Temperature Discharge: 75 ℃
Low Temperature Charge: - 7 ℃
Feature:

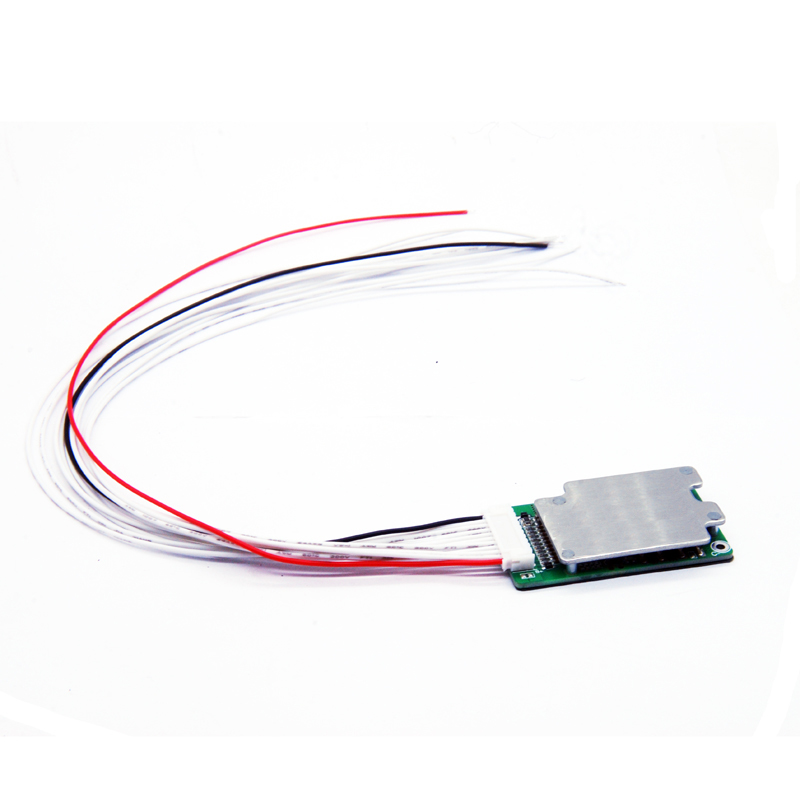

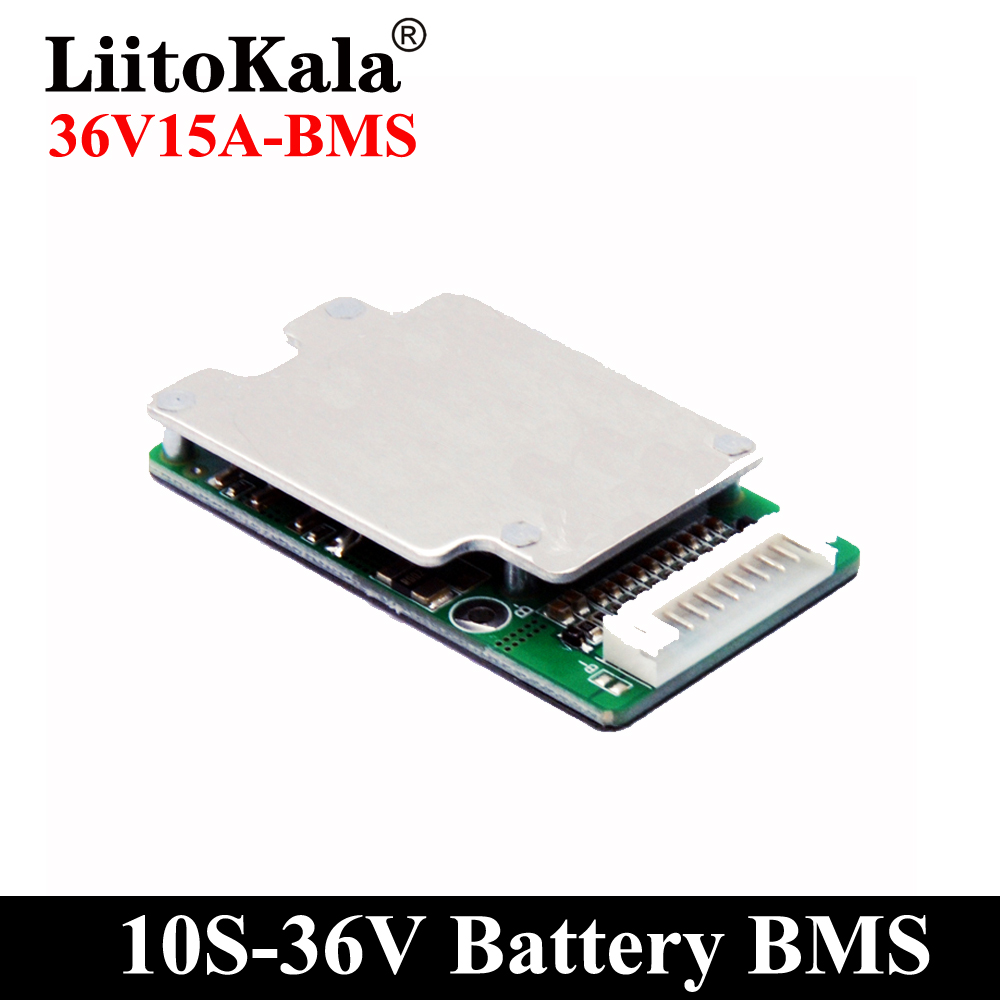

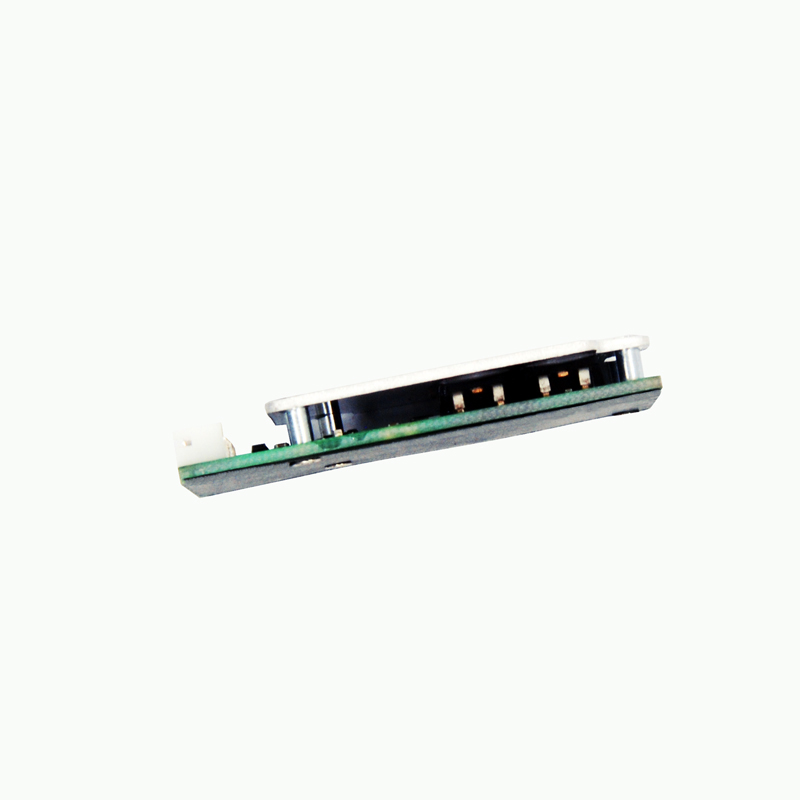

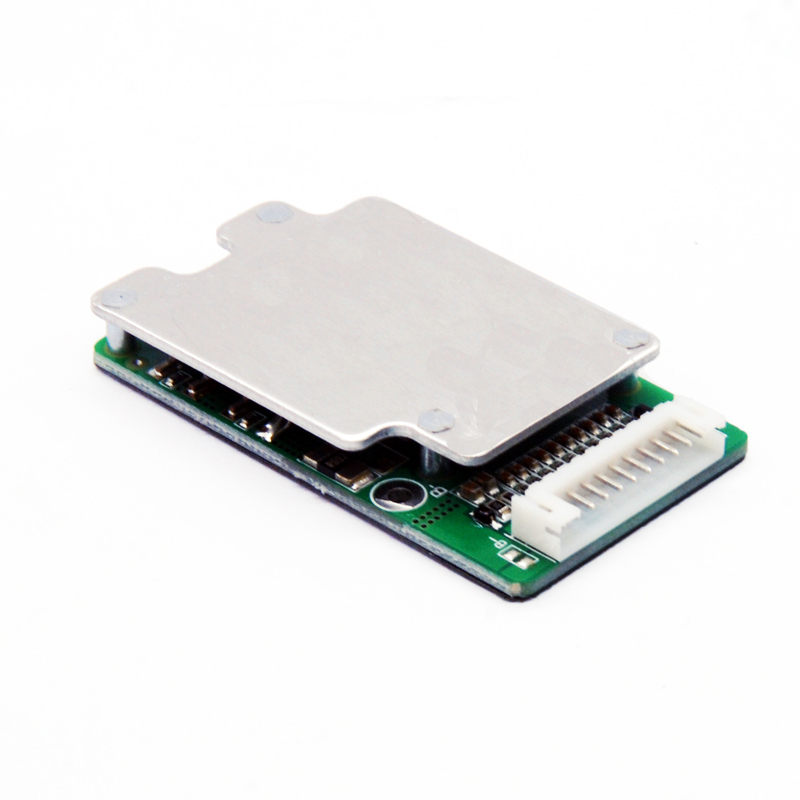

Li-ion cell 18650 battery protection board.
Has balance function which would ensure each battery cell being fully charged at same time.
Overcharge protection, over-discharge protection and short circuit protection.
With temperature control protection function.
Fine workmanship and good performance.
Safe and reliable.
Easy to use.
Long service life.
Suitable for 10 series cell Li-ion batteries, can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries.
Suitable for electric car, electric power assistant car, skateboard car, inverter, etc.
Brand new
Applicable Voltage: 36V
Applicable Power: <500w
Max. Working Current: 20A
Continuous Maximum Current: 5A
Over-discharge Protection Voltage: 2.6v
Overcharge Protection Voltage: 4.25v
Charging Current: max. 10A
Balance Voltage: 4.2v
High Temperature Discharge: 75 ℃
Low Temperature Charge: - 7 ℃
Feature:
Li-ion cell 18650 battery protection board.
Has balance function which would ensure each battery cell being fully charged at same time.
Overcharge protection, over-discharge protection and short circuit protection.
With temperature control protection function.
Fine workmanship and good performance.
Safe and reliable.
Easy to use.
Long service life.
Suitable for 10 series cell Li-ion batteries, can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries.
Suitable for electric car, electric power assistant car, skateboard car, inverter, etc.
