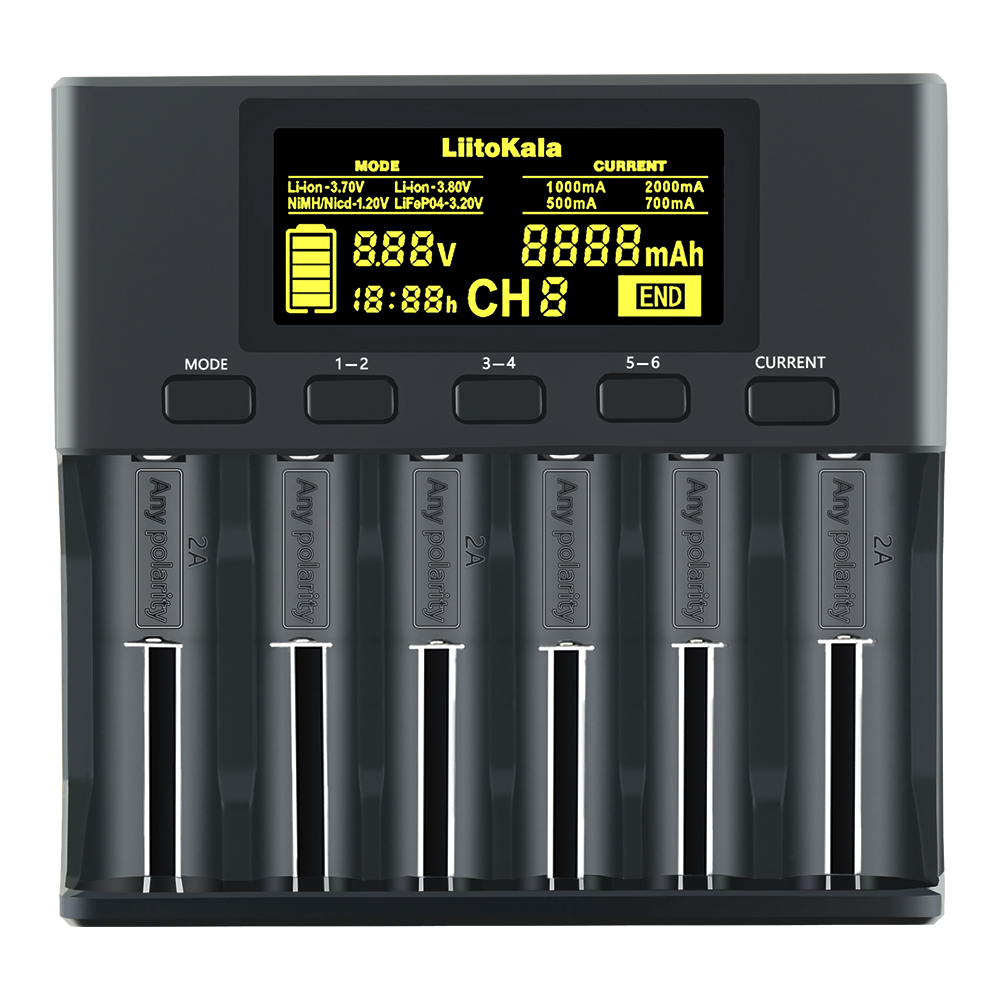

Cautions:
1.This charger can charge all cylindrical rechargeable batteries 3.7V Li-Ion , 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2.Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3.If DC input, only 12V 3A is recommended
4.Mind heating while charging
5.Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6.For indoor use only
7.The displaying data only for reference, please refer to professional instrument for more accurate data
Specifications and functions:
1.Multi-power input: 12V 3A adapter(selective), four independent charging and micro computer management system.
2.Charge current intelligent auto-set of total three levels: 500mA /700mA /1000mA/2000mA)，2000mA is fixed only for slot#1/3/6.
3.Multi-functional LED charging indicators: for charging progress: 25% - 50% - 75% -100% , battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR) and for charging current: 0.5A/1A/2A
4.Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5.Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
6.Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7.Charging  at constant voltage and current


Button and LED :
1.Button of Mode: While power supply is connected,  1) Short click the mode button to change the battery type. It will start to charge 9 seconds after setting the battery type (3.2V or 3.80V),  1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries; 2) During charging process, short click the mode button to display battery type.
Note: Battery type can be only selective before charging starts.
2.LED: While power supply connected, all LEDS light up immediately  1) If no battery is inserted, the 500mAh LED (one of the three current display LEDS ) will keep on and others will be off.  2) When battery is inserted and detected, 4 LED charging indicator for the channel will be on among which 3.7V battery type LED keeps flashing indicating to set the battery type, if no operation in 5 seconds, it begins by automatic detection(Li-Ion 3.7V or NIMH)  then four LED indicators will display the charging status. 3) During charging, short click the Mode button to show the battery type within 5 seconds; 4) If no power supply is connected, inserting a battery, it can quick shows the remaining charger volume of the battery.
*LED display graphic reference:

Electrical Parameters:
1.Input :  DC 12V 3A（selective）；
2.Output voltage: DC 4.2V for Li-Ion 3.70V
                    DC 4.35V for Li-Ion 3.85V( IMR)
                    DC 3.65V for LiFePO4
                    DC 1.48V for NiMH/NI-Cd
3.Output current: Li-Ion/IMR/LiFePO4 2000mA*3(only for slot#1/3/6),
1000mA*6/700mA*6 /500mA*6
NiMH/NiCd:  500mA
4.Constant voltage, cut-off current: less than 100mA；
5.Standby current: less than 15mA。
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650，21700，20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA，SC, C

Model:  (Optional)

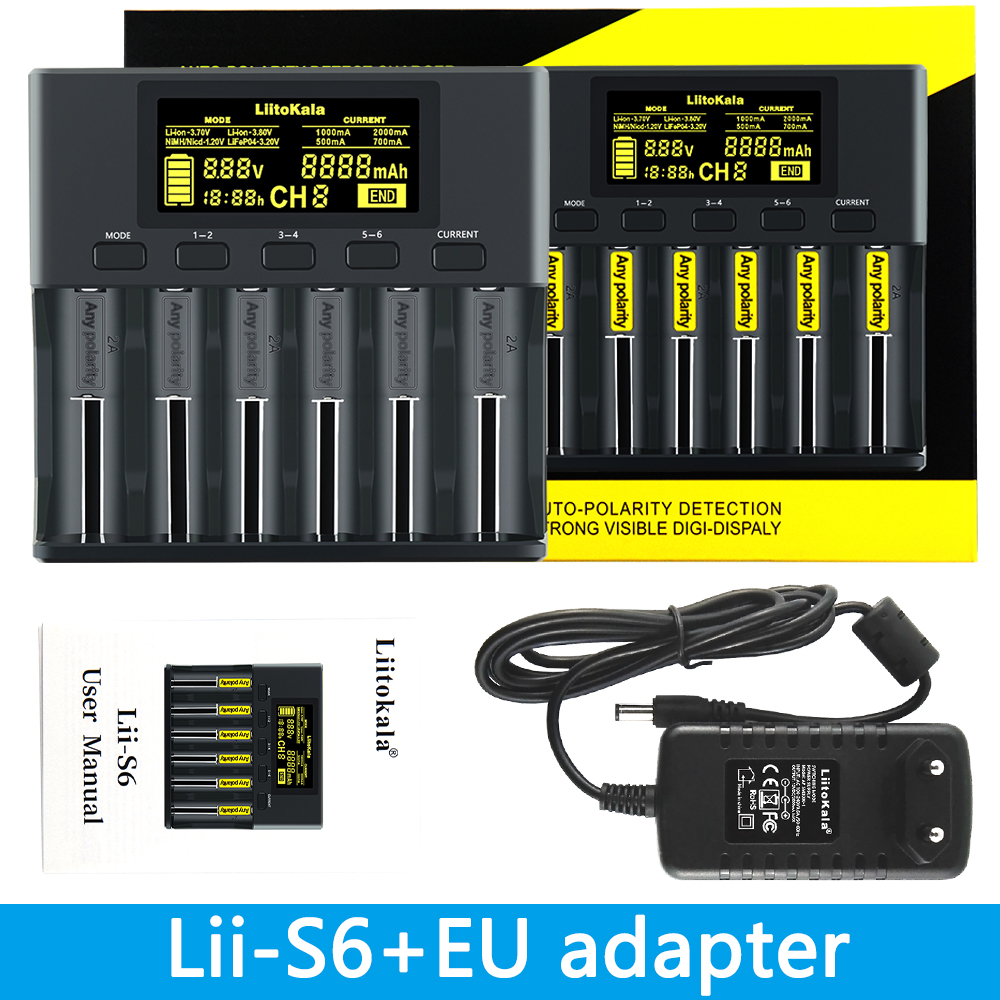

Lii-S6 no car (Battery Charger + Power Adapter)

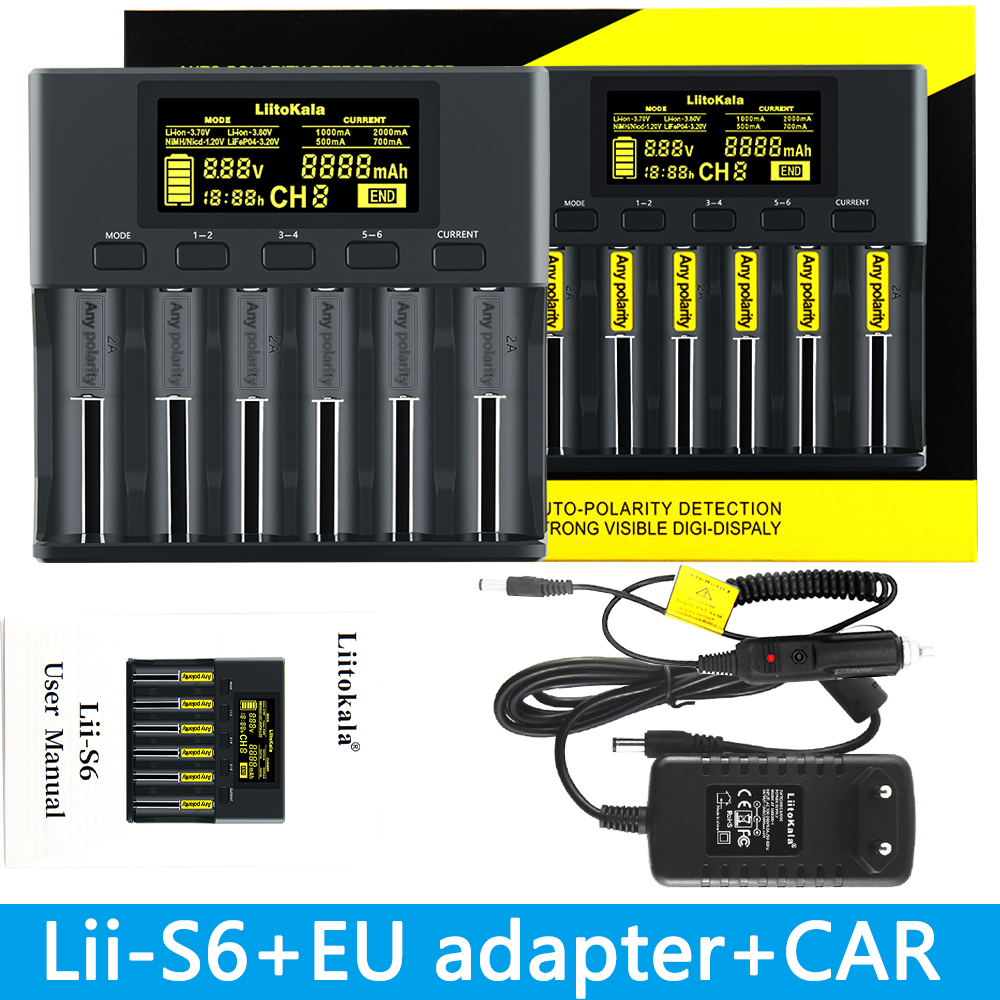

Lii-S6 + car (Battery Charger + Power Adapter+car)


Package List:
1 * LiitoKala Lii-S6 Battery Charger
1 * Power Adapter (EU/US/UK Plug)
1 * User Manual (English & Chinese)

CTNS:
Weight:  700g±1g
Charger Size: 155*150*35mm
Carton Size: 52.5*32*32.5cm
18pcs/box(13.3kg)
