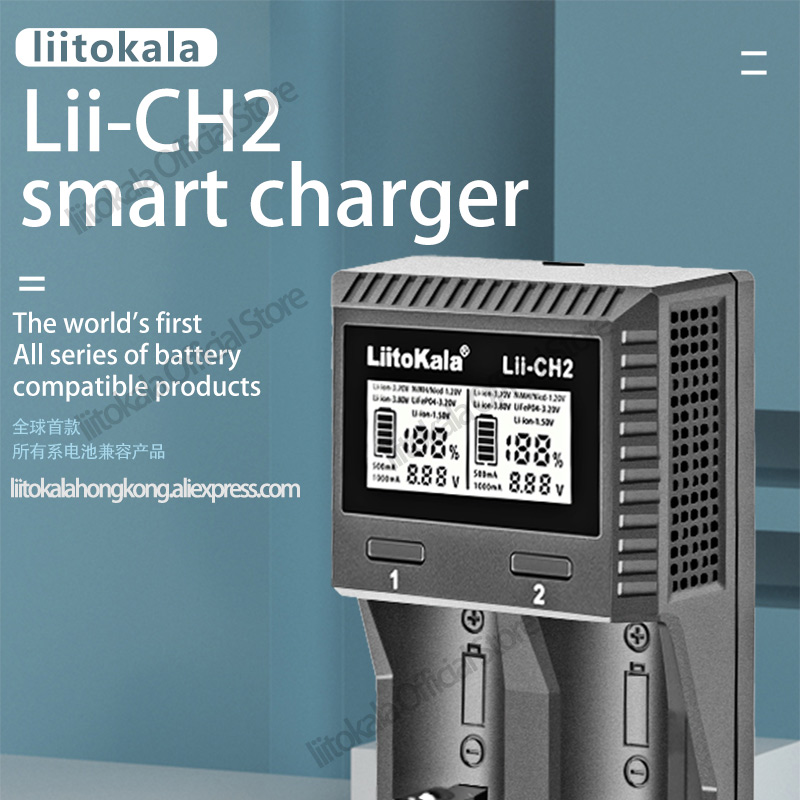

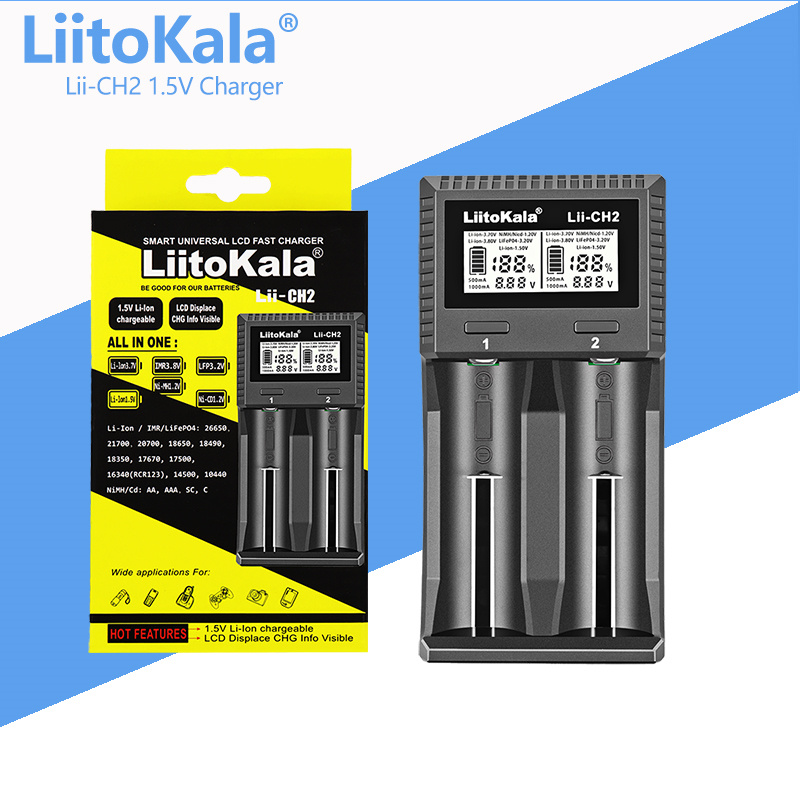

LiItoKala Lii-CH2 Charger

Specifications :
Brand:LiitoKala
Model:Lii-CH2
Parameters:

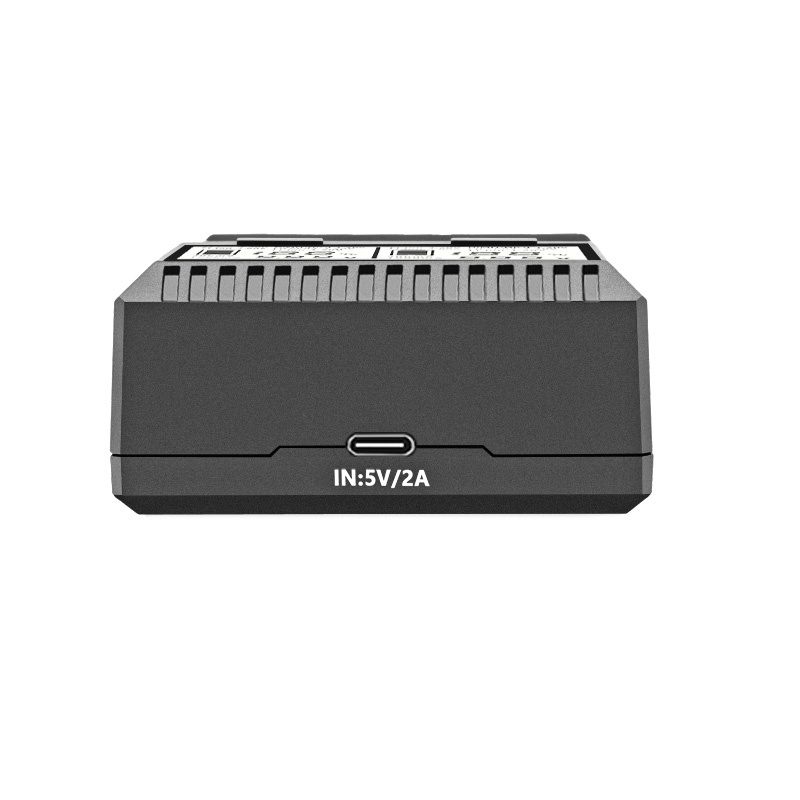

1) Input power supply: USB 5.0V 2.0A（Type-C）
2) Output voltage:DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-Cd
3) Output current:
Li-ion/IMR/LiFePO4： 1000mA*2 500mA*2
NiMH/Nicd: 1000mA*2 500mA*2
4) Constant current/constant voltage, cut off 100mA;
5) Standbycurrent:<50mA;
6) Compatible battery types and models
Li-Ion / IMR/LiFePO4: 26650，21700，20700, 18650, 18490,
18350, 17670, 17500, 16340(RCR123), 14500, 10440 NiMH/Cd: AA, AAA，SC, C

Product Detail

Description

Warning:
1）This charger can only charge cylindrical lithium-ion batteries (Li ion 3.70V/3.80V), lithium iron phosphate batteries (LiFePO4-3.20V), and nickel hydrogen/nickel cadmium (Ni MH/Nicd 1.20V) batteries; And a 1.5V lithium-ion battery (4.2V to 1.5V);
2）Before use, please carefully refer to the manual and pay attention to the recommended charging current of the rechargeable battery. Do not charge beyond the recommended current;
3） Choose to use a 5.0V DC adapter, with a power supply current of no less than 2.0A;
4）The charger may generate heat during charging, please place it out of reach of children for charging;
5） When stopping use, please unplug the power and battery;
6）It can only be used indoors at room temperature;
7）The testing data of this product is for reference only, please refer to professional instruments for actual situations.

Description:

1）USB 5.0V 2.0A (minimum) input, intelligent charging and microcomputer management system for each slot;
2）The biggest highlight of this charger is the charging of a 1.5V lithium-ion battery (4.2V to 1.5V);
3）Charging current selective at 0.5A/1.0A;
4) Insert the battery. To change the charging current, press and hold the MODE key to select the charging current (500mA/1000mA)
5) Insert a 1.5V lithium-ion battery (4.2V to 1.5V) with a default current of 500mA for charging and cannot select a current;
6)The system can automatically recognize lithium 3.70V and nickel hydrogen/nickel cadmium (1.20V) batteries and 1.5V lithium-ion batteries. Press the MODE key to manually select lithium iron phosphate batteries 3.20V and lithium 3.80V (IMR) batteries
7)It has a 0 V voltage activation function, and cannot be charged between 1.65 and 2.20 V (but there will be activated current trickle charging);
8)It has multiple safety protection functions such as overcharging, over discharging, short circuit, reverse connection, etc., and can intelligently and automatically identify faulty batteries;
9)Charging mode: constant current and voltage.

Kye and display:

1. Key:

1.1 Button MODE (function key): This button is the battery type selection key; Within 9 seconds of powering on the battery, click the MODE button to select the type of charging battery (Li ion 3.70V, Li ion 3.80V, LiFePO4-3.20V), but other types cannot be selected when charging nickel hydrogen/nickel cadmium (Ni MH/Nicd 1.20V) batteries; During the charging process, the type of rechargeable battery cannot be re selected;

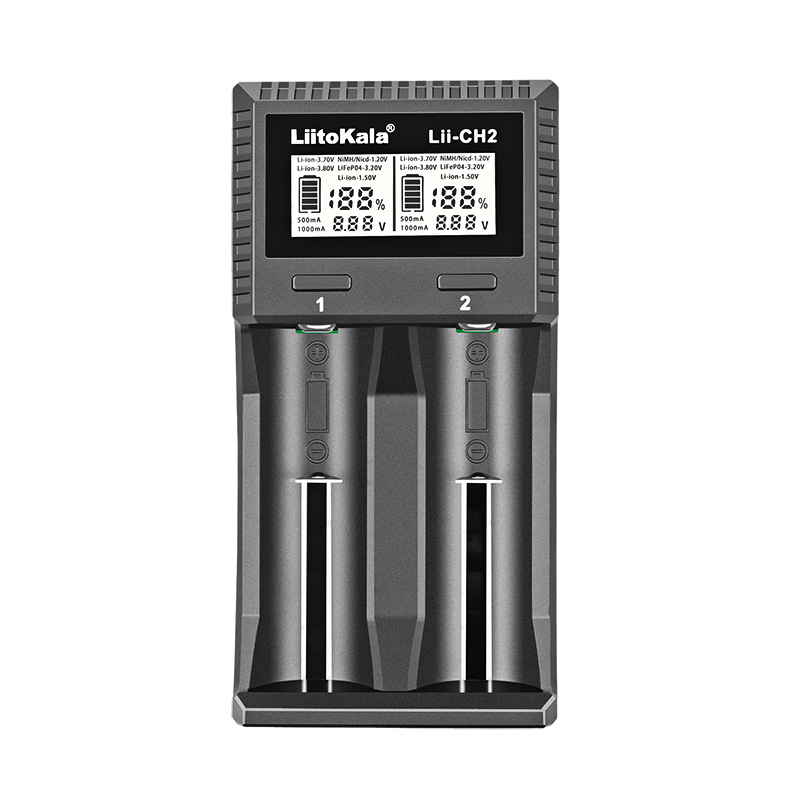

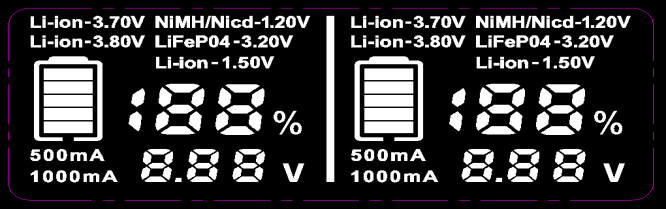

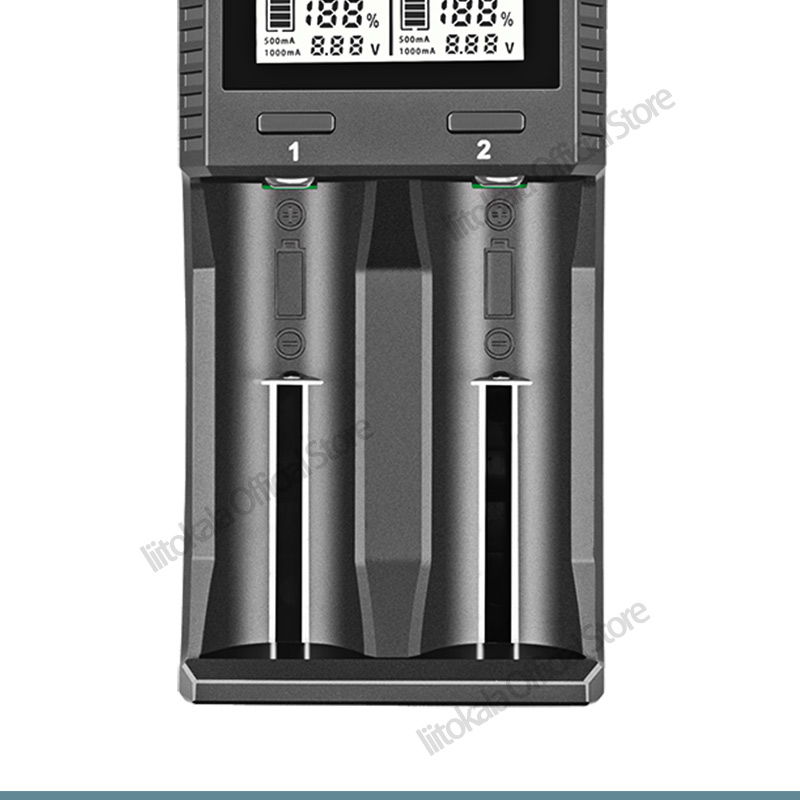

*LCD display reference image:

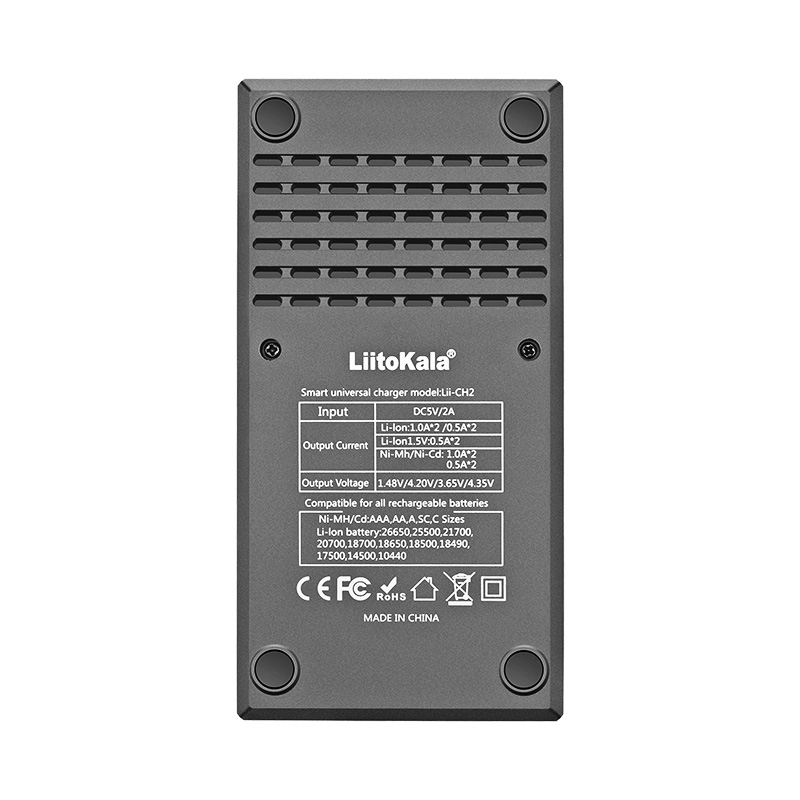

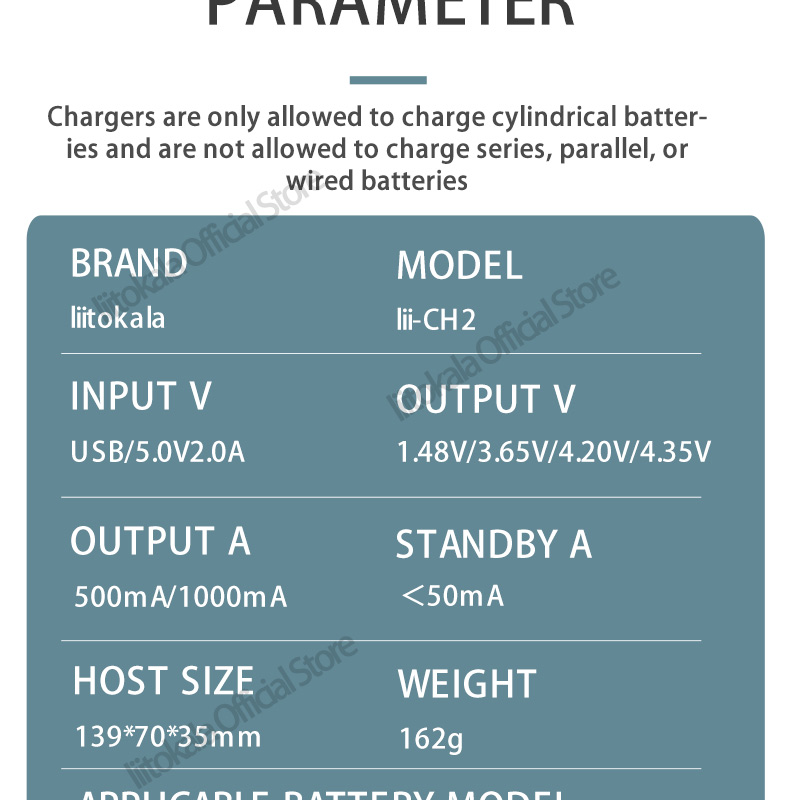

Parameters:
1)Input power supply: USB5.0V 2.0A
2) Output voltage:DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-Cd
3) Output current:
Li-ion/IMR/LiFePO4： 1000mA*2 500mA*2
NiMH/Nicd: 1000mA*2 500mA*2
4) Constant current/constant voltage, cut off 100mA;
5) Standbycurrent:<50mA;

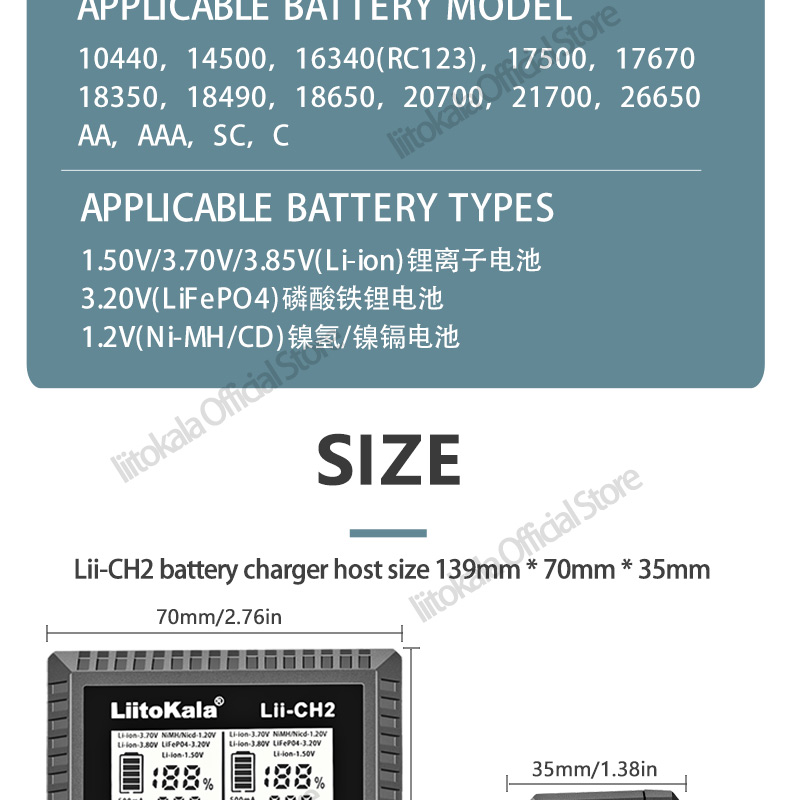

4. Compatible battery types and models
Li-Ion / IMR/LiFePO4: 26650，21700，20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA，SC, C

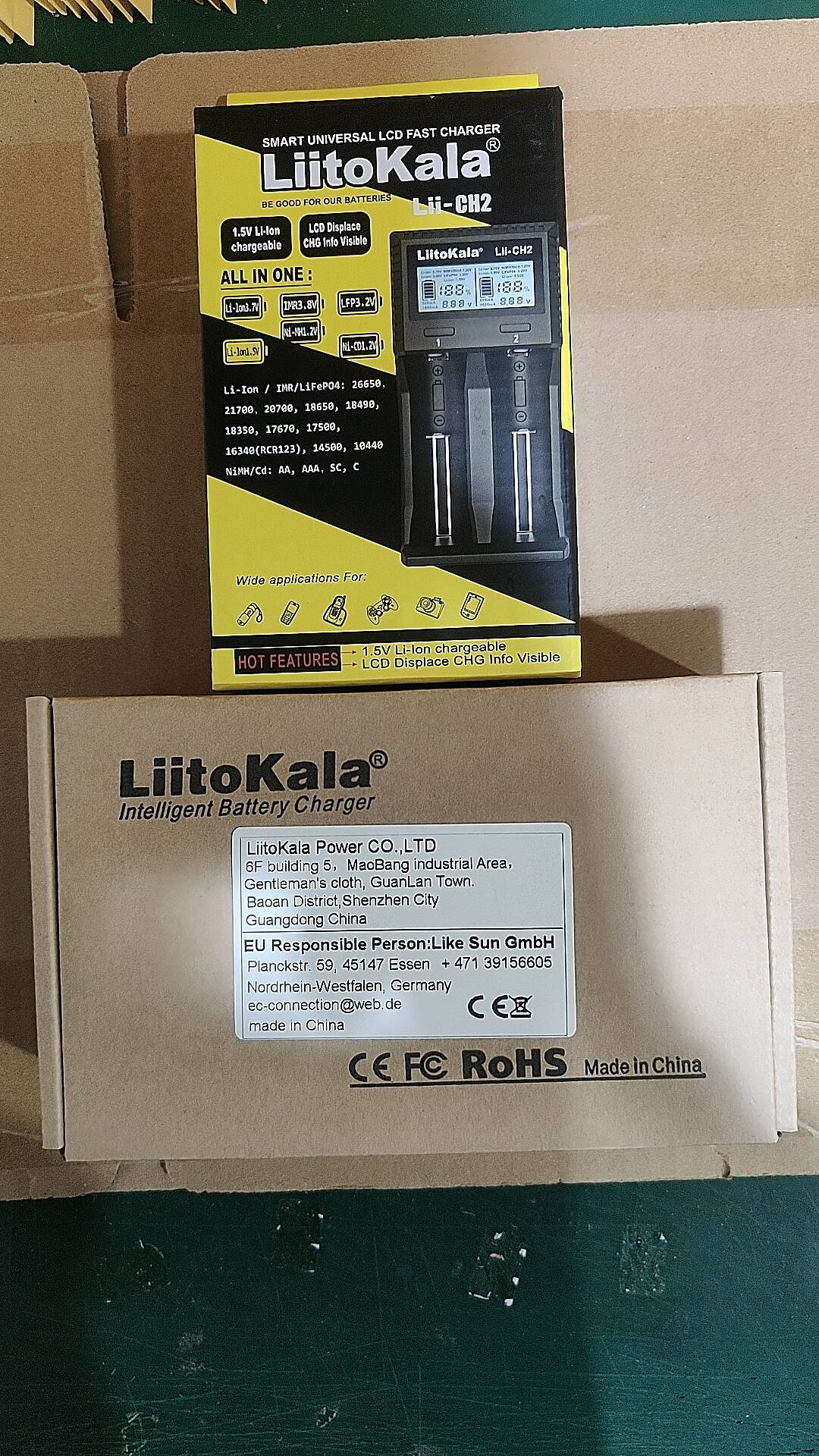

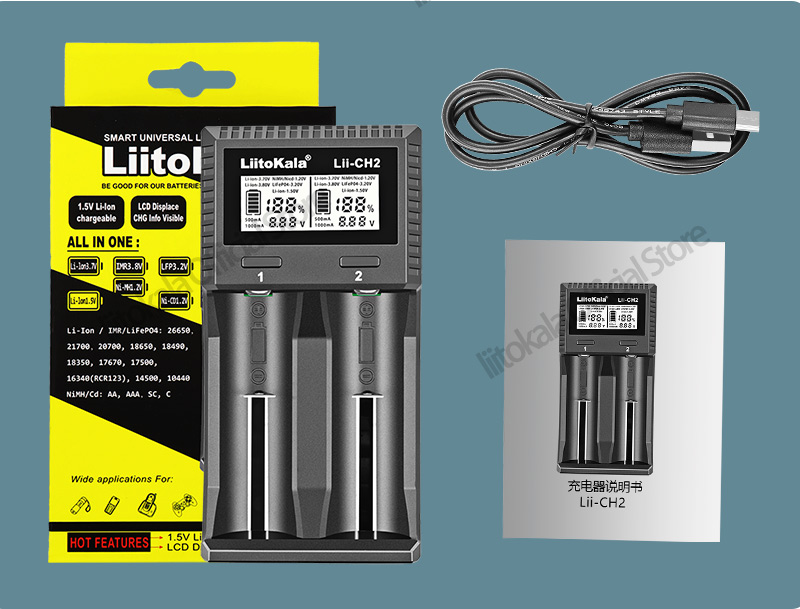

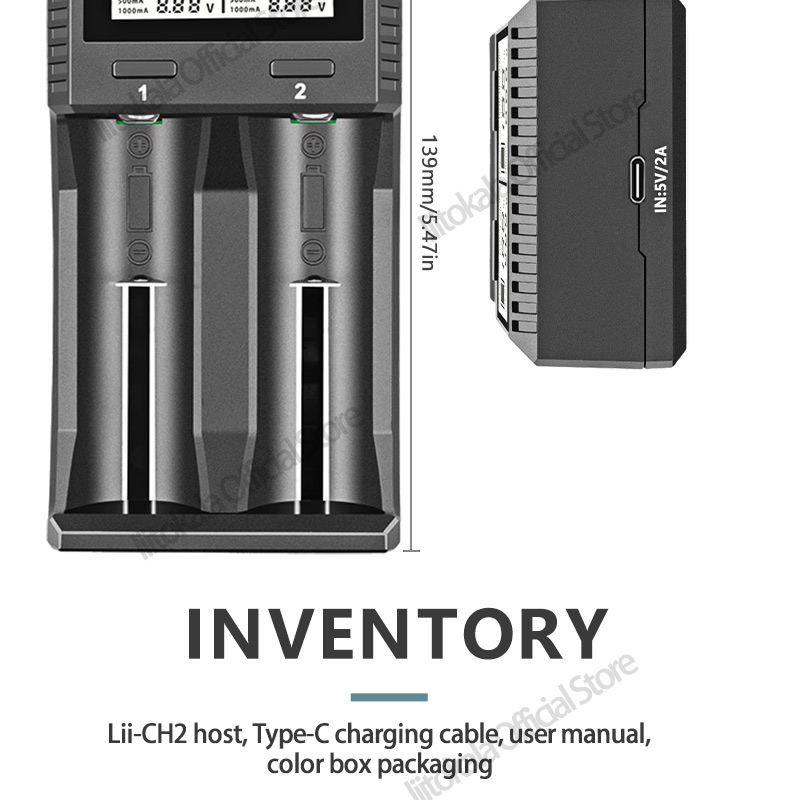

Packing list:

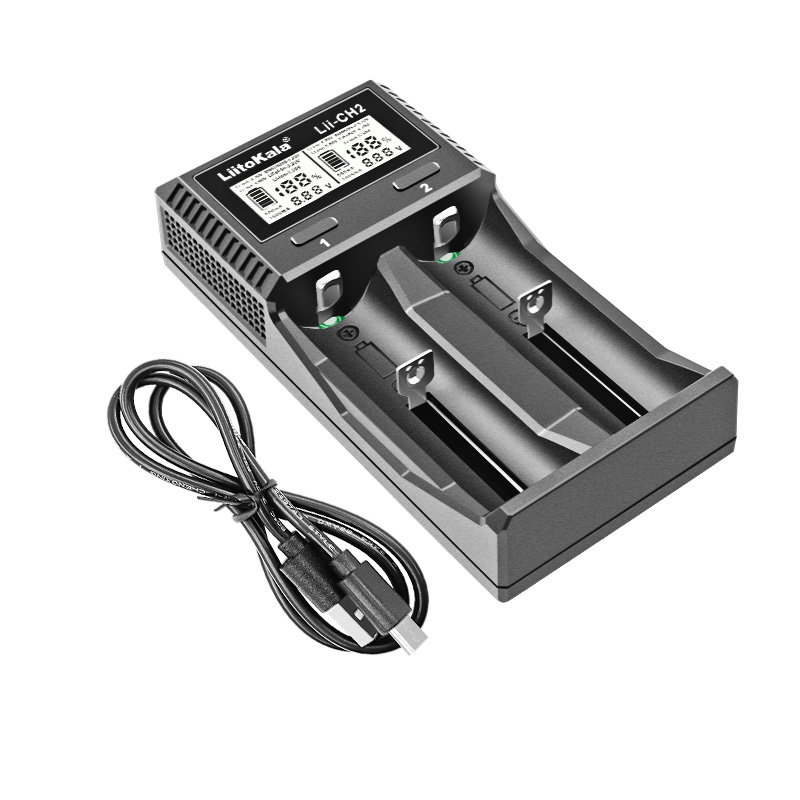

1 * LiitoKala Lii-CH2 Battery Charger
1 * USB charging cable
1 * User Manual (English & Chinese & Russian)
1 * Tracking no.

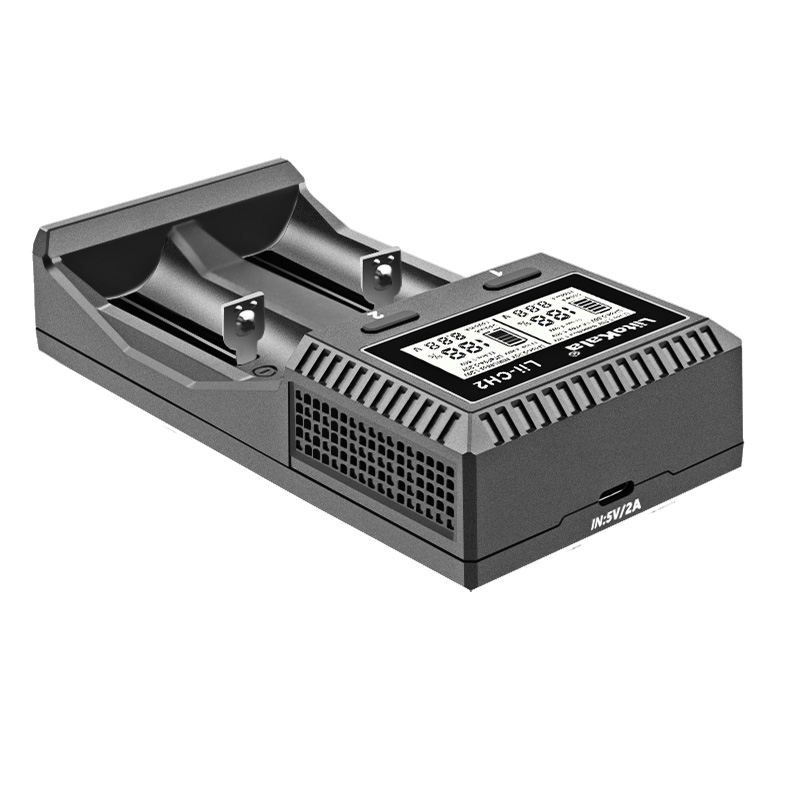

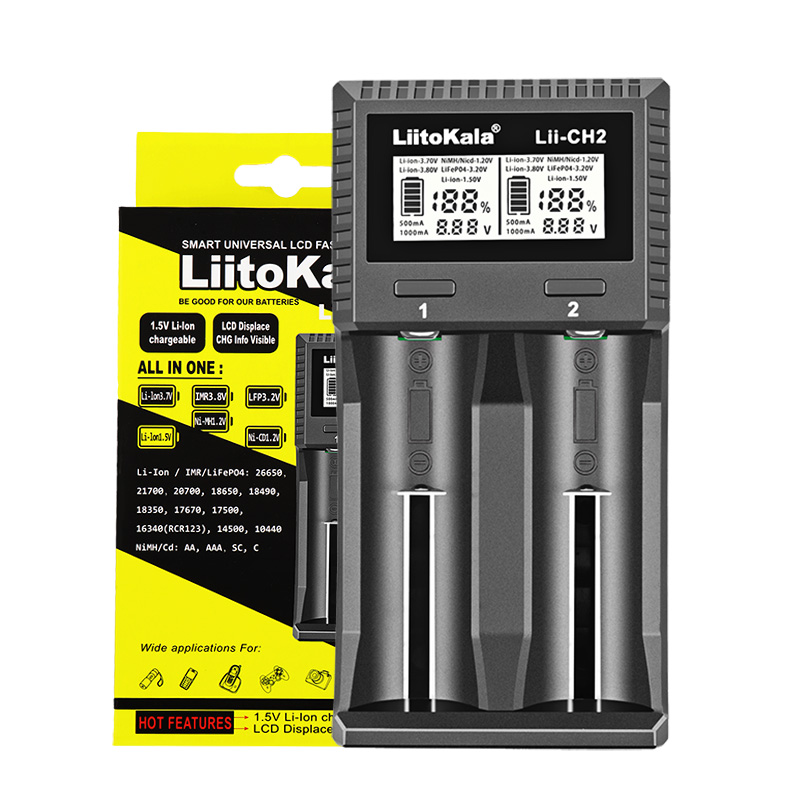

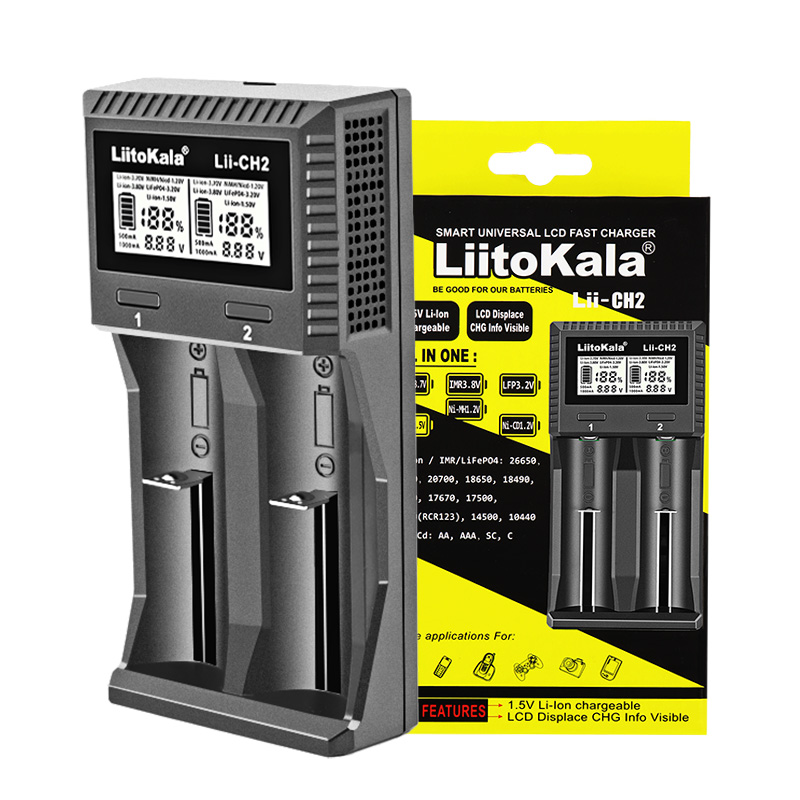

Photo display
